V.92 Handshakes (1-Mar-03)

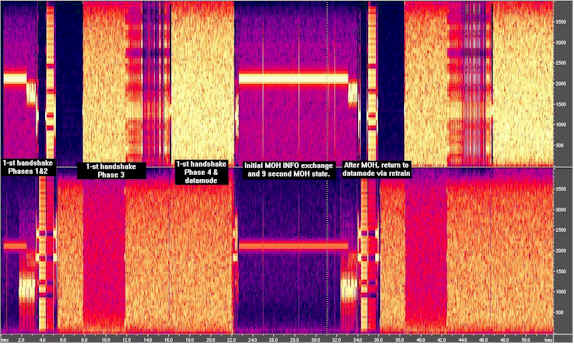

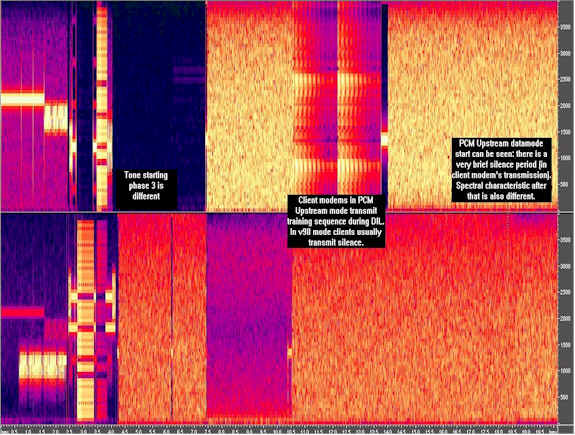

Special thanks to Jarek Niewczas for sharing these V.92 audios & visuals he did while working of V.92 PCM upstream server (headend) modem code for  Lake Datacomms DSP group. The first is a handshake where the client (USR) modem achieves PCM upstream with the server. The second is a V.92 handshake, followed by a modem-on-hold, and return to data mode. Jarek can be contacted at (remove the spam trap removethis from the e-mail address).

Both the audio & visual have been compressed and reduced in size. Premium Access Subscribers may access the original high-quality .wav and full-size graphics here

Click for V.92 PCM upstream handshake mp3 audio

Click for V.92 Modem-on-hold .wav audio
