Modem Log for Windows 2000 & XP

Windows 2000 & XP:
Control Panel -> Phone & Modems -> Modems Tab
Select your modem, then click
Properties.
Diagnostics tab.

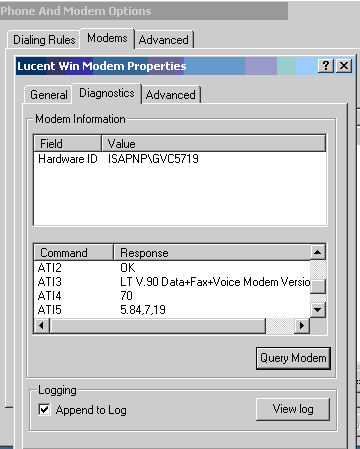

You can enable logging by checking the Append to Log Box;

You can View the log by clicking the View Log button.

A portion of a Windows XP Modemlog with Agere SVP Softmodem is shown at right.
The Windows drivers (these are not the modem drivers) and versions providing universal modem support are listed first.

The Modem inf path identifies which .inf file Windows will use for your modem. The .inf file defines basic operation (commands and responses) for your modem.

When a call is made, the modemlog shows the modem initialization strings and responses.

Any initialization string you specify is preceded with "Sending user initialization commands." In this example, the echo command, E1, setting is added.

Normally, the modemlog will suppress the phone number being dialed: ATDT########. The echo command adds the modem response - the unmasked number. This can be helpful in situations where you don't get connected to your ISP - you might be dialing the wrong number via improper connectoid settings!

The modem's connect responses are logged and interpreted based upon the .inf file used.

During the connection, multiple Read:... entries will appear.

If you or something on your computer terminates the connection, a TSP(#): Dropping Call entry will appear.
16:43:37.468 - File: D:\WINDOWS\System32\tapisrv.dll, Version 5.1.2600
16:43:37.468 - File: D:\WINDOWS\System32\unimdm.tsp, Version 5.1.2600
16:43:37.468 - File: D:\WINDOWS\System32\unimdmat.dll, Version 5.1.2600
16:43:37.468 - File: D:\WINDOWS\System32\uniplat.dll, Version 5.1.2600
16:43:37.500 - File: D:\WINDOWS\System32\drivers\modem.sys, Version 5.1.2600
16:43:37.500 - File: D:\WINDOWS\System32\modemui.dll, Version 5.1.2600
16:43:37.531 - File: D:\WINDOWS\System32\mdminst.dll, Version 5.1.2600
16:43:37.531 - Modem type: Agere Systems PCI Soft Modem
16:43:37.531 - Modem inf path: oem6.inf
16:43:37.531 - Modem inf section: MONTBLANC_Modem
16:43:37.531 - Matching hardware ID: pci\ven_11c1&dev_048c&subsys_044c11c1
16:43:38.109 - Opening Modem
16:43:38.250 - TSP(0000): Making Call
16:43:38.250 - 115200,8,N,1, ctsfl=1, rtsctl=2
16:43:38.250 - Initializing modem.
16:43:38.265 - Send: AT<cr>
16:43:38.265 - Recv: AT<cr>
16:43:38.265 - Command Echo
16:43:38.265 - Recv: <cr><lf>OK<cr><lf>
16:43:38.265 - Interpreted response: OK
16:43:38.281 - Send: AT &F E0 &C1 &D2 V1 S0=0\V1<cr>
16:43:38.281 - Recv: AT &F E0 &C1 &D2 V1 S0=0\V1<cr>
16:43:38.281 - Command Echo
16:43:38.296 - Recv: <cr><lf>OK<cr><lf>
16:43:38.296 - Interpreted response: OK
16:43:38.312 - Send: ATS7=60S30=0L0M1\N3%C1&K3B0B15B2X4<cr>
16:43:38.312 - Recv: <cr><lf>OK<cr><lf>
16:43:38.312 - Interpreted response: OK
16:43:38.312 - Sending user initialization commands.
16:43:38.328 - Send: ATE1<cr>
16:43:38.328 - Recv: <cr><lf>OK<cr><lf>
16:43:38.328 - Interpreted response: OK
16:43:38.328 - Dialing.
16:43:38.328 - TSP Completing Async Operation(0x00010367) Status 0x00000000
16:43:38.328 - TSP(0000): LINEEVENT: LINECALLSTATE_DIALING
16:43:38.328 - TSP(0000): LINEEVENT: LINECALLSTATE_PROCEEDING
16:43:38.343 - Send: ATDT#######<cr>
16:43:38.343 - Recv: ATDT4435142<cr>
16:43:38.343 - Command Echo
16:44:02.421 - Recv: <cr><lf>CONNECT 50666 V44<cr><lf>
16:44:02.421 - Interpreted response: Connect
16:44:02.421 - Connection established at 50666bps.
16:44:02.421 - Error-control on.
16:44:02.421 - Data compression on.
16:44:02.421 - TSP(0000): LINEEVENT: LINECALLSTATE_CONNECTED
16:44:32.421 - Read: Total: 36825, Per/Sec: 1224, Written: Total: 0, Per/Sec: 0
18:18:32.421 - Read: Total: 666913, Per/Sec: 1, Written: Total: 0, Per/Sec: 0
18:18:50.234 - TSP(0000): Dropping Call
18:18:50.234 - Hanging up the modem.
18:18:50.234 - Hardware hangup by lowering DTR.
18:18:51.296 - Detected CD dropped from lowering DTR
18:18:51.296 - Recv: <cr><lf>NO CARRIER<cr><lf>
18:18:51.296 - Interpreted response: No Carrier
